TV Wall Brackets - Soundtrack

Very flat TV wall bracket for small and medium screen sizes up to 109 cm /43''.

Ideal for small and medium TVs
Very flat profile
Wall base with up to 6 fixing points
Quick & easy installation in 3 steps

EDP.No.:37983

Technical data
For screen sizes up to 109cm / 43“
VESA 50*50 to 200*200
Wall distance 16mm only
Max weight load: 25 kg
Weight of the bracket 1,5 kg only
Color: titan
Incl wall fixing kit (Fischer® anchors)

Tilt TV wall bracket for medium screen sizes up to 140 cm / 55''

Ideal for medium sized TVs
Stepless and tool-free tilt adjustment
Flat profile
Wide mounting base with up to 8 fixing points
Quick & easy installation

EDP.No.:37974
Technical data
For screen sizes up to 140cm / 55''
VESA 200*200 to 400*400
Wall distance just 38mm
Stepless & tool-free tilt adjustment up to 12°
Max weight load: 35kg
Weight of the bracket 2,1kg
Colour: black

Tilt TV wall bracket for large and heavy TVs up to 165 cm / 65''

Ideal for large and heavy TVs
Stepless and tool-free tilt adjustment
Flat profile
Wide mounting base with up to 16 fixing points
Quick & easy installation

EDP.No.:37975
Technical data
For screen sizes up to 165cm / 65''
VESA 200*200 to 600*400
Wall distance just 38mm
Stepless & tool-free tilt adjustment up to 12°
Max weight load: 50kg
Weight of the bracket 2,5kg
Colour: black

Tilt TV wall bracket for extra-large and heavy TVs up to 216 cm / 85''

Ideal for extra-large and heavy TVs
Stepless and tool-free tilt adjustment
Flat profile
Wide mounting base with up to 20 fixing points
Quick & easy installation

EDP.No.:37976
Technical data
For screen sizes up to 216cm / 85''
VESA 200*200 to 800*400
Wall distance just 36mm
Stepless & tool-free tilt adjustment up to 12°
Max weight load: 65kg
Weight of the bracket 2,6kg
Colour: black

Full Motion TV wall bracket for small & medium sized TVs up to 109 cm / 43''

2 arms / 3 hinges
Tilt and swing
Flat profile and long max wall distance
Horizontal level correction
Robust steel construction
Quick & easy installation
Smooth motion
Cable management

EDP.No.: 37979
Technical data
For screen sizes up to 109cm / 43''
VESA 75*75 to 200*200
Wall distance 58 to 423mm
Max +/- 90° swing radius (max radius for screen width smaller 846mm only)
Stepless tilt adjustment +5° / -15°
Horizontal level correction +/- 6°
Max weight load: 25kg
Weight of the bracket just 1,5kg
Colour: black

This comfort TV wall bracket sets standards in design, operation comfort and reliability.

Very strong 2-arm-construction made of aluminum+steel
Ultimate comfort when swivelling or tilting the TV
If desired the television can be swivelled using just one finger
Patented Torque-Adjust-Function. The effort for swing and tilt depends on the weight of the screen. This bracket offers a patented torque adjustment function which allows to adjust the torque for the swing and the tilt function according to individual comfort requirements.
The screen can be moved just by finger tip
High max. wall distance (572 mm)
High max. weight load of 35 kg
Fast & easy installation
Very smooth motion
Cable management
For screen sizes up to 140cm / 55“
VESA 100*100 bis 400*400
Wall distance 115-572 mm
Swivel +/- 90°
+/-15° stepless tilt
Incl. wall fixing kit (made by Fischer®)

Full Motion TV wall bracket, extra-long reach from the wall

2 arms / 3 hinges
Tilt and swing
Extra-long reach from the wall
Horizontal level correction
Robust steel construction
Quick & easy installation
Incl. wall fixing kit (Fischer anchors)
Smooth motion
Cable management
For screen sizes up to 165cm / 6''
VESA 100*100 to 400*400
Wall distance 70 to 700mm
+/- 90° swing radius even for 60“ screen sizes
Tool-free tilt adjustment +5° / -10°
Tool-free horizontal level correction +/- 5°
Incl. bubble level
Max weight load: 45kg
Weight of the bracket 5,8kg
Colour: black

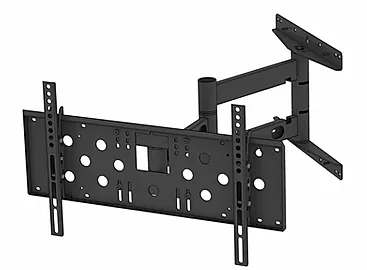

Product Code: AJP44B

A fully articulated single arm assembly wall mount designed for small and medium flat screen televisions and computer monitors.

The tilting range is -7.5 degrees to +7.5 degrees
Fits all wall mountable screens between 37 and 65 inches.
Manufactured from high grade steel and coated in high quality black powder coat gloss.
180 degree left & right with up to 7.5 degree tilt
Unique padlock security system (Padlock not supplied)
The mount itself comes supplied fully assembled to ensure integrity and strength.
Unique G-Fit Guarantee – guarantees fitment of screen and connectivity for the consumer
This Mountech product carries our “Lifetime Guarantee” (Terms and Conditions Apply)
Extends from 130mm to 788mm
Weight loading is 40kg

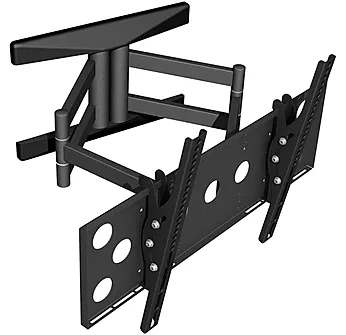

Product Code: AJP55B
A fully articulated dual arm assembly wall mount designed for medium and large flat screen televisions and computer monitors.

The tilting range is -7.5 degrees to +7.5 degrees
Fits all wall mountable screens between 37 and 65 inches.
Manufactured from high grade steel and coated in high quality black powder coat gloss.
120 degree left & right with up to 7.5 degree tilt
Unique padlock security system (Padlock not supplied)
The mount itself comes supplied fully assembled to ensure integrity and strength.
Unique G-Fit Guarantee – guarantees fitment of screen and connectivity for the consumer
This Mountech product carries our “Lifetime Guarantee” (Terms and Conditions Apply)
Extends from 130mm to 640mm
Weight loading is 60kg

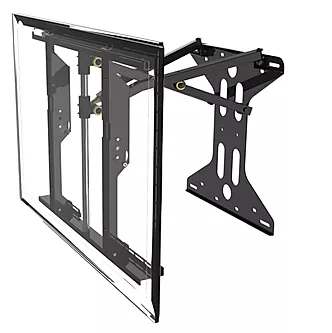

Canter Lever Bracket
A fully extendable and retractable “Motion Easy Glide” and tilting wall mount designed for medium and large flat screen televisions and computer monitors.

Fits all wall mountable screens between 37 and 75 inches.
Manufactured from high grade steel and coated in high quality black powder coat gloss.
120 degree left & right with up to 15 degree tilt
The mount itself comes supplied fully assembled to ensure integrity and strength.
Arms are directly bolted to bracket for extra security
Designed and Manufactured in the United Kingdom.
Unique G-Fit Guarantee – guarantees fitment of screen and connectivity for the consumer
This Mountech product carries our “Lifetime Guarantee” (Terms and Conditions Apply)
Extends from 74mm to 465mm
Weight loading is 75kg
